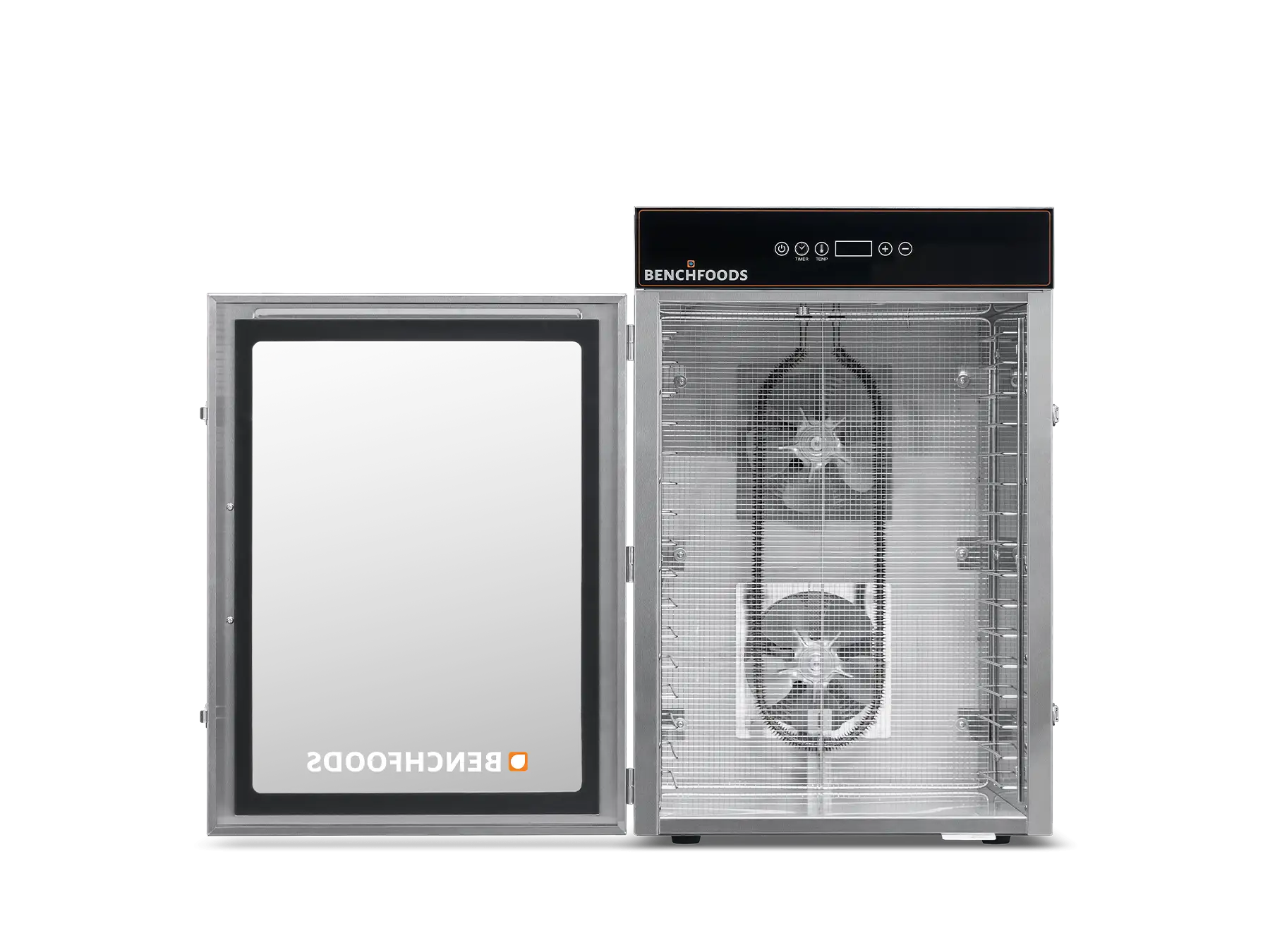

16 Tray Dehydrator

16 Tray Dehydrator

16 Tray Dehydrator

1 Zone / 16 Tray / 2.56m² Tray Area

This 100% stainless steel dehydrator is designed for ongoing commercial use with our high-efficiency forced air convection system.

  • Over 2.5m2 of total tray area, you can dehydrate at commercial rates.
  • Adjustable temperature range between 30 - 90°C as well as ambient mode, running just the fans without activating the heating coil.
  • Using the 99 hour digital timer, you are able to set the time and return hours later with no stress.
  • This highly efficient unit pulls up to 50% less energy than other models with the same dry time.
  • 304 Food Grade stainless steel mesh trays allow food to dry evenly on both sides. No need to rotate or turn food during the drying cycle.
  • Dishwasher safe non-stick mats can be purchased separately for fruit roll ups, flour, grains and also to cut down your cleaning time.
  • Perfect for vegetables, jerky, fruit, pet treats, and so much more. The only limit is your imagination.
WHAT YOU GET:

1 x Commercial Dehydrator
16 x Stainless steel mesh trays
1 x Stainless steel pan drip tray

Satisfaction Guarantee - 120 Day Return Policy
Finance Options Available - Same Day Approval
5 year Comphrehensive warranty
free shipping worldwide
quick & easy finance available
5 year Comprehensive warranty
free shipping worldwide
quick & easy finance available
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
specifications
features
reviews
faqs & warranty
you might also like

specifications

You are currently viewing metric measurements. Change your unit of measure above to view imperial measurements.
PRODUCT FEATURES SPECIFICATIONS
Brand BenchFoods
Model 16CUDG
Max Power Usage 1.875 kW
Avg Power Usage 750 W
Voltage / Frequency 220-240V/50-60Hz
Max Amperage 8A
Safety Breaker Required Single Phase/10A (Standard Household Outlet)
Power Cable Standard Household Plug Included
Temperature Range Ambient Mode, 30 - 90°C
Timer 0 - 99hr
Independent Zones 1
Total Tray Area 2.56 m²
Total Trays 16
Tray Dimensions 40 x 40 cm
Space Between Trays 35 mm
Tray Mesh Spacing 8 x 8 mm
Machine Weight 30kg
Product Dimensions (W x H x D) 470 x 730 x 575 mm
Features Memory Function, Ambient Air Mode

download user manual

download tech drawing

download

download spec sheet

download

Trolley options & specs

Model IDUTC-15
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 15
Layer Spacing 80 mm
Number of Trays 30
Tray area 8.8 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Back to top
Model IDUTC-18
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 18
Layer Spacing 67 mm
Number of Trays 36
Tray area 10.6 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Back to top
Model IDUTC-20
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 20
Layer Spacing 60 mm
Number of Trays 40
Tray area 11.8 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Back to top
Model IDUTC-25
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 25
Layer Spacing 48 mm
Number of Trays 50
Tray area 14.7 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Back to top
Model IDUTC-30
Dimensions: (W x H x D) 920 x 1450 x 695 mm
Layers: 30
Layer Spacing 40 mm
Number of Trays 60
Tray area 17.7 m2
Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.
Back to top

Tray Types & specs

Model IDUT-MT
Dimensions: (W x H x D) 46 x 64 x 1cm
Mesh Spacing 12 x 12mm
Tray area 0.3 m2
Back to top
Model IDUT-FMT
Dimensions: (W x H x D) 46 x 64 x 1cm
Mesh Spacing 2 x 2mm
Tray area 0.3 m2
Back to top
Model IDUT-FPT
Dimensions: (W x H x D) 46 x 64 cm x (2.5-4.5cm)
Mesh Spacing 15
Tray area 0.3 m2
Back to top
Model IDUT-PPT
Dimensions: (W x H x D) 46 x 64 cm x (2.5-4.5cm)
Mesh Spacing 8mm Ø
Tray area 0.3 m2
Back to top
