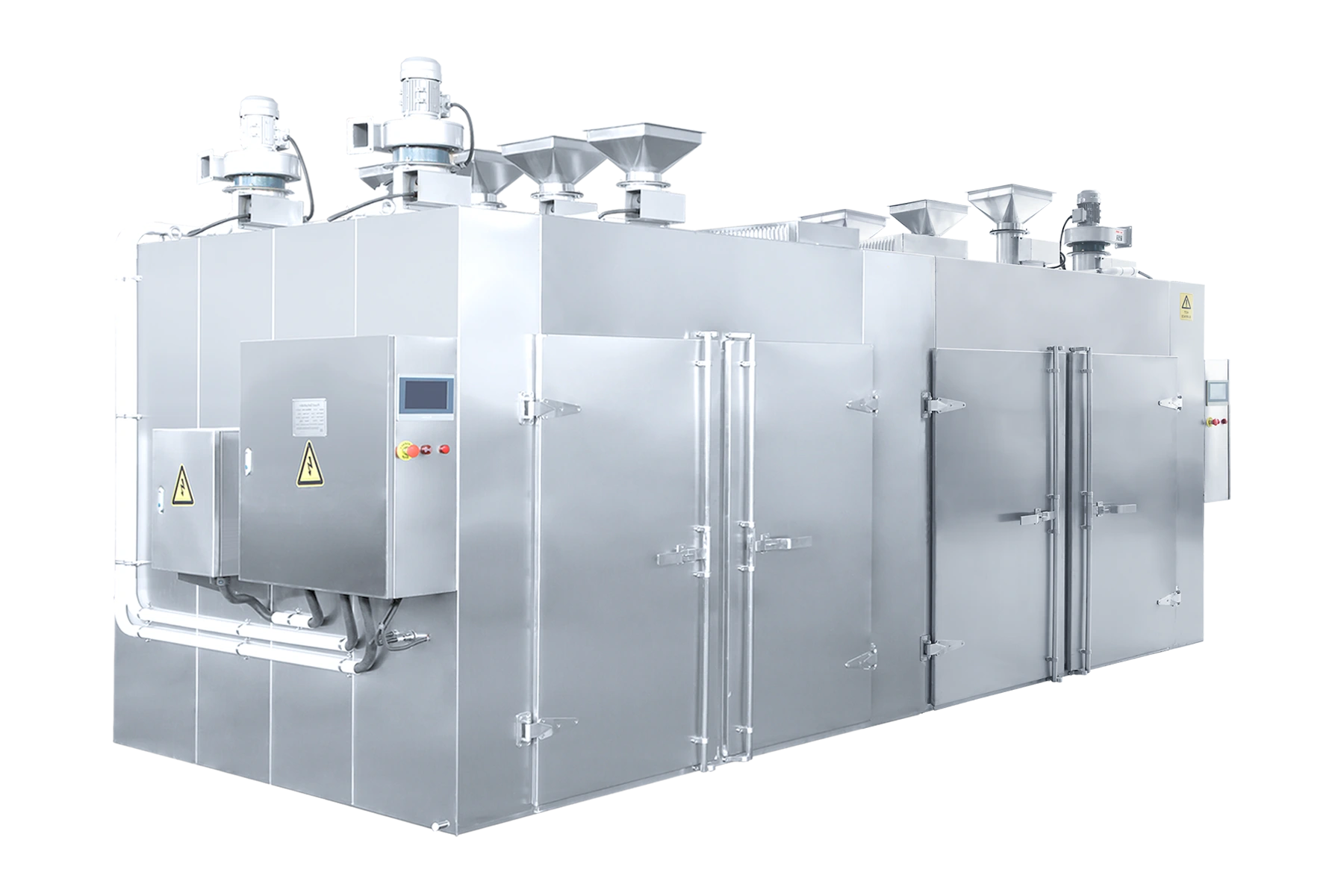

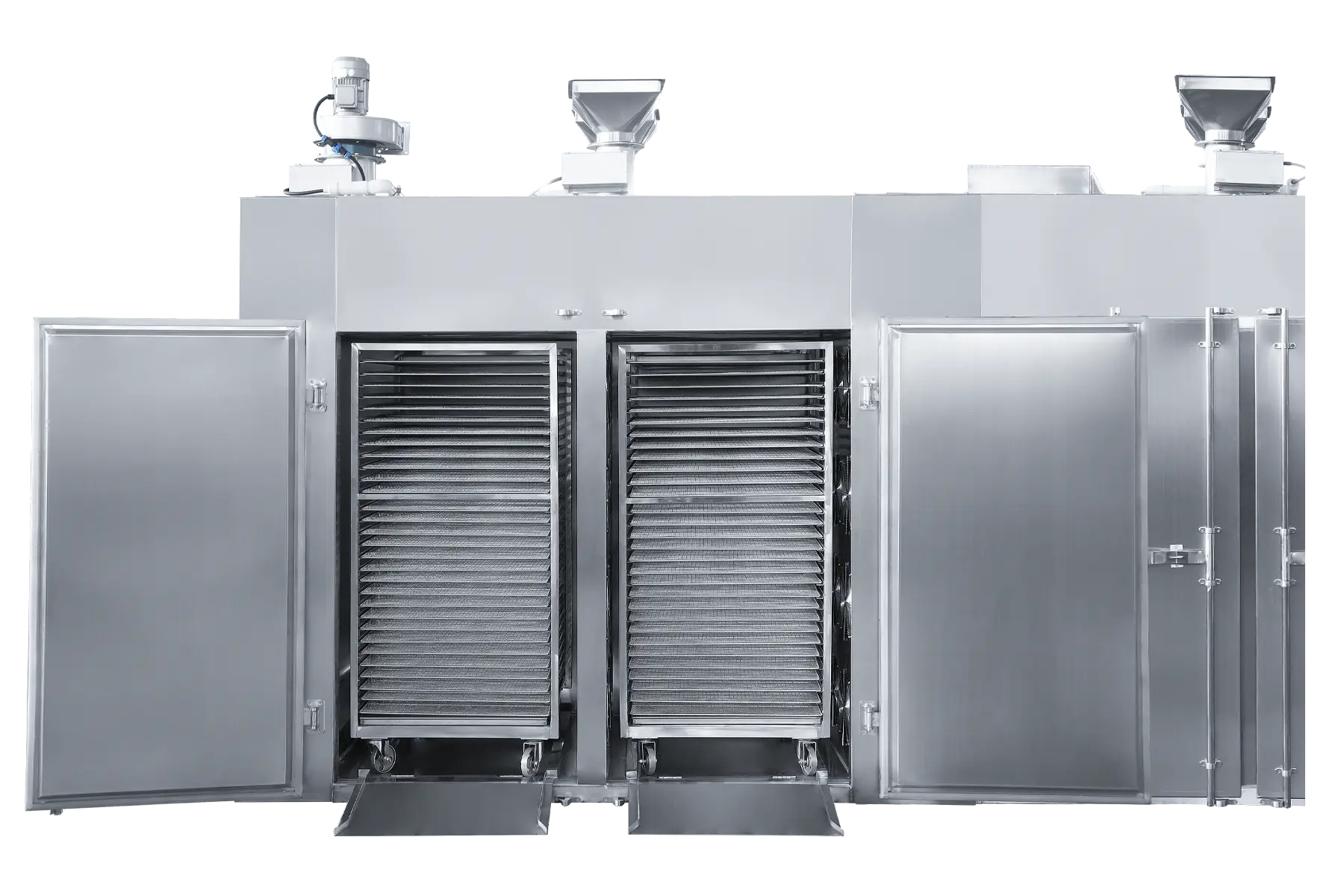

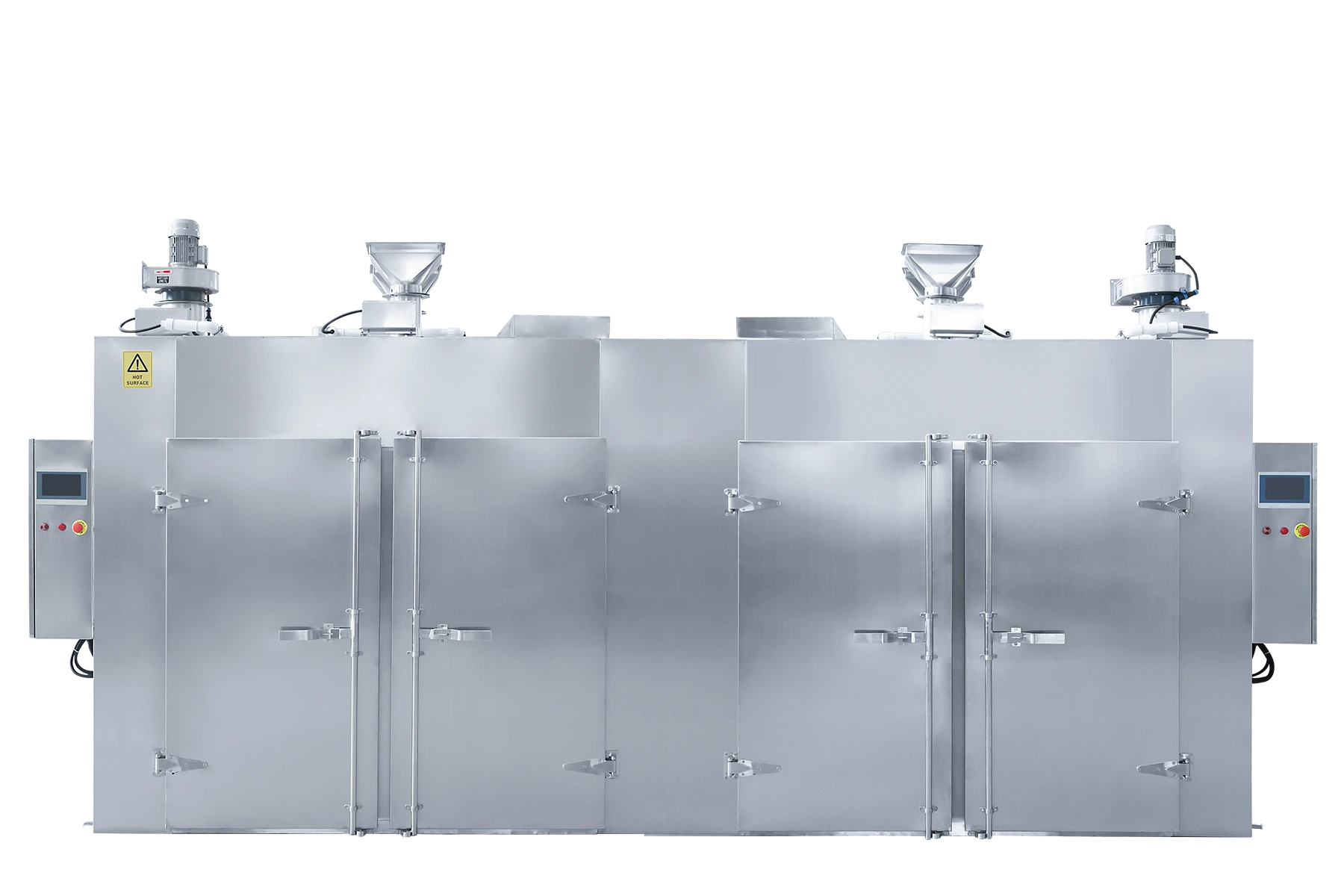

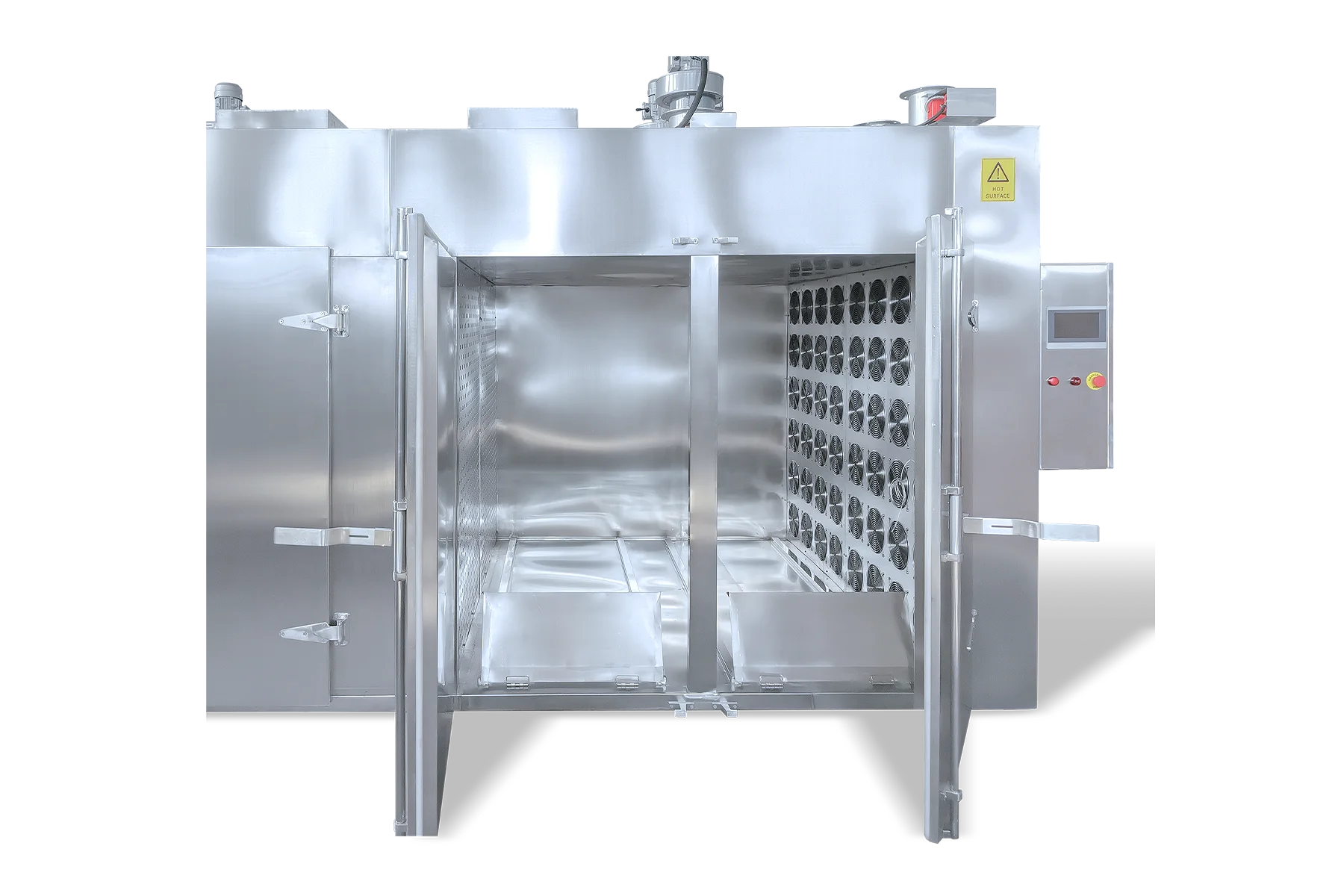

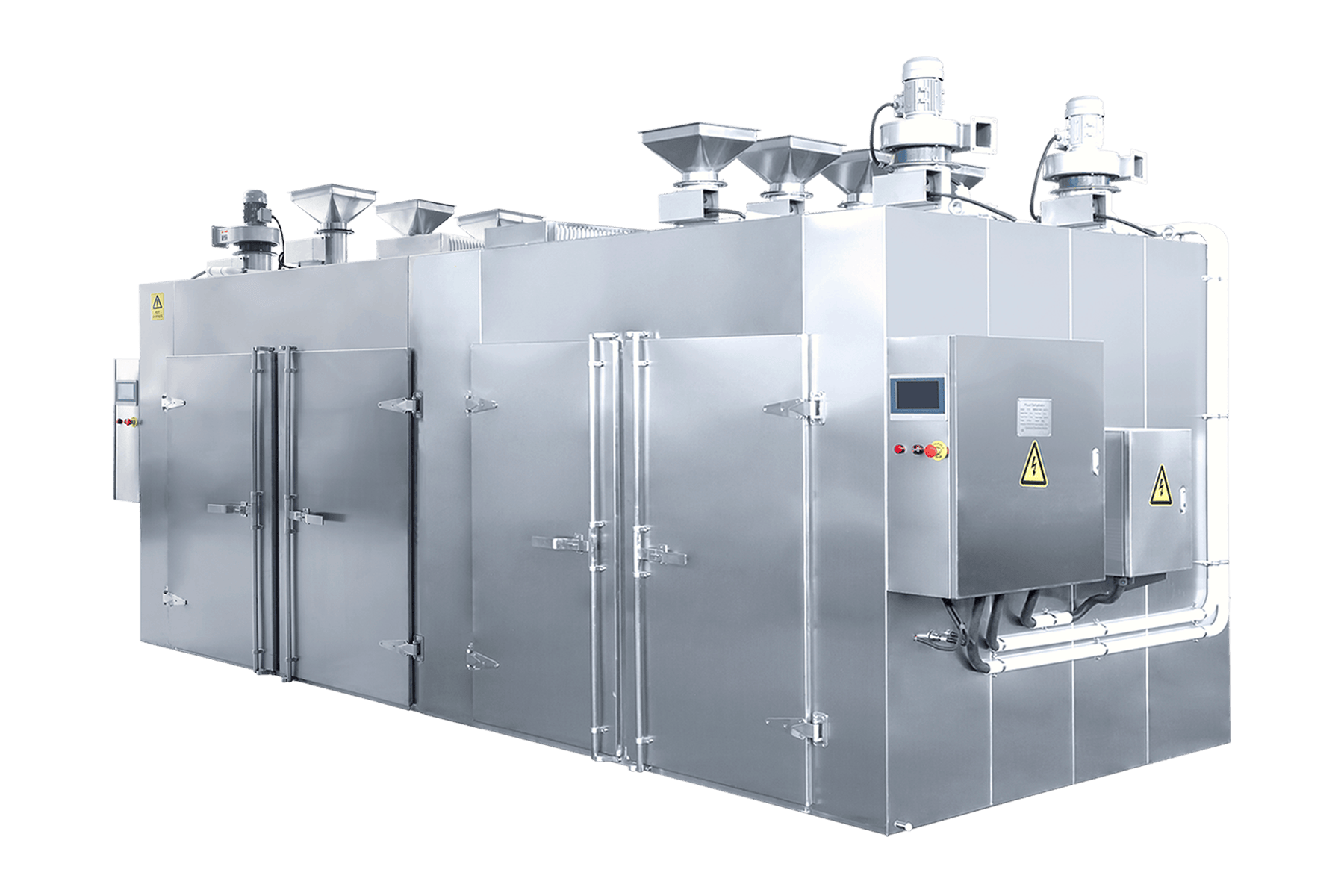

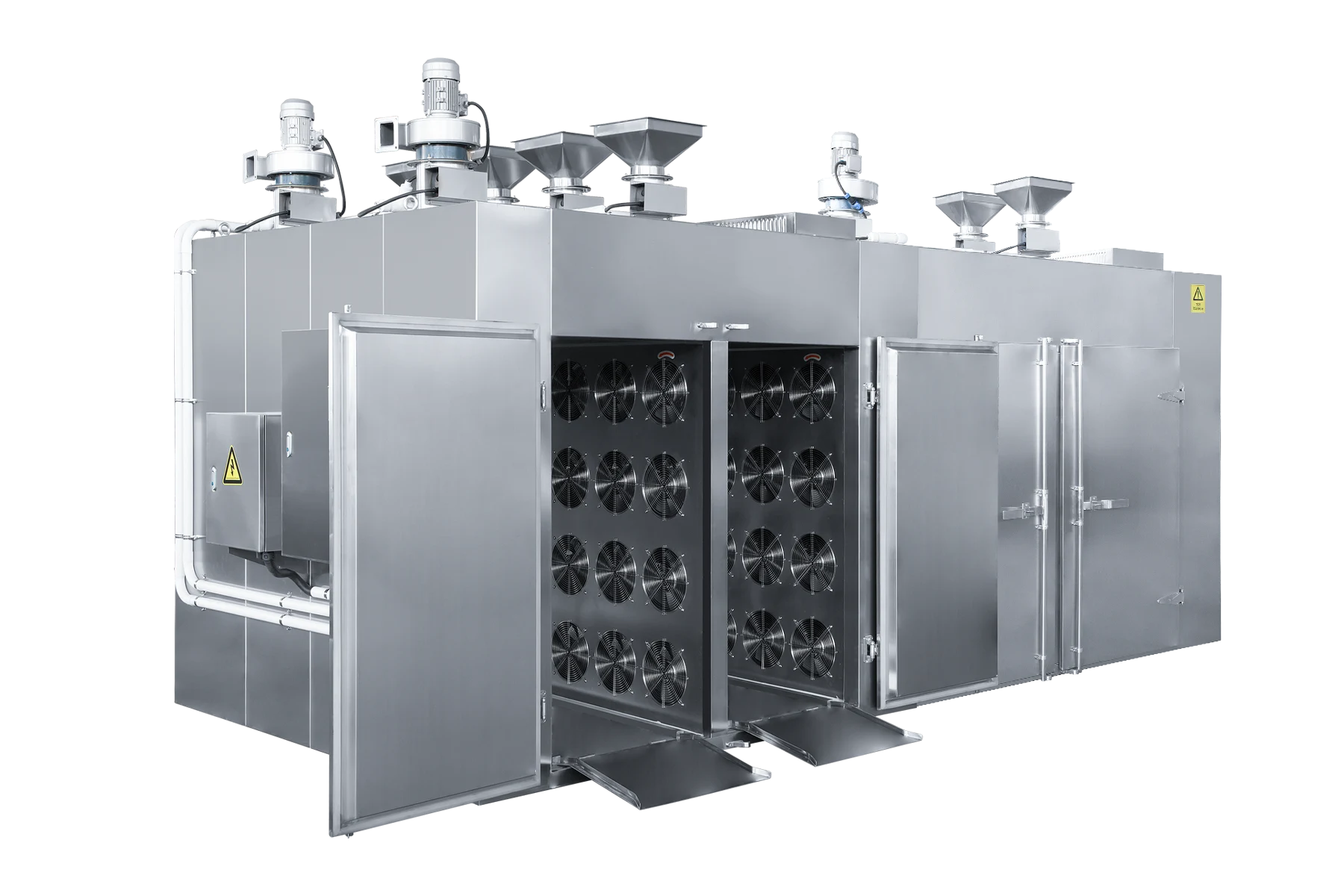

8 Trolley Dehydrator

240 - 480 Tray / 70.7 - 141.3m² Total tray area

Our IU-08 Industrial model dryer oven is manufactured entirely from 304 Food Grade Stainless Steel, with the option to upgrade to 316 Stainless Steel, and can be operated 24 hours a day, 7 days a week, 365 days a year. Housing a robust design, this machine has been specifically engineered for accurate, high-volume production. With 64 × 46 cm trays and our high-efficiency forced air convection system, you can dehydrate your product at industrial rates.

This model comes equipped with a 9999-hour timer and an adjustable temperature range of 0–120°C. Offering a limited 62.8 kW power draw, this highly efficient unit uses up to 50% less energy than other models on the market while achieving faster drying times.

With a choice of 240–480 trays made from 304 Food Grade Stainless Steel—available in mesh, fine mesh, perforated, or solid pan configurations (with 316 Stainless Steel options available upon request)—we provide a surface suitable for all types of dehydrating conditions. Perfect for fruits, nuts, jerky, biltong, vegetables, and more.

WHAT YOU GET:

1 x Industrial Dehydrator
8 x Trolleys of your choice
240 - 480 Trays / Pans of your choice

Satisfaction Guarantee - 120 Day Return Policy

Finance Options Available - Same Day Approval

5 year Comphrehensive warranty

free shipping worldwide

quick & easy finance available

5 year Comprehensive warranty

free shipping worldwide

quick & easy finance available

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

specifications

You are currently viewing metric measurements. Change your unit of measure above to view imperial measurements.

view imperial view metric

PRODUCT FEATURES	SPECIFICATIONS
Max Power Usage	45 KW (22.5kw each side)
Avg Power Usage	28-30 kW
Voltage / Frequency	3-Phase / 50-60Hz - 400V, Custom
Product Dimensions (W x H x D)	4240 x 2000 x 2200 mm
Loading Footprint Required (W x H x D)	4240 x 2000 x 3600 mm
Machine Weight	2200 kg

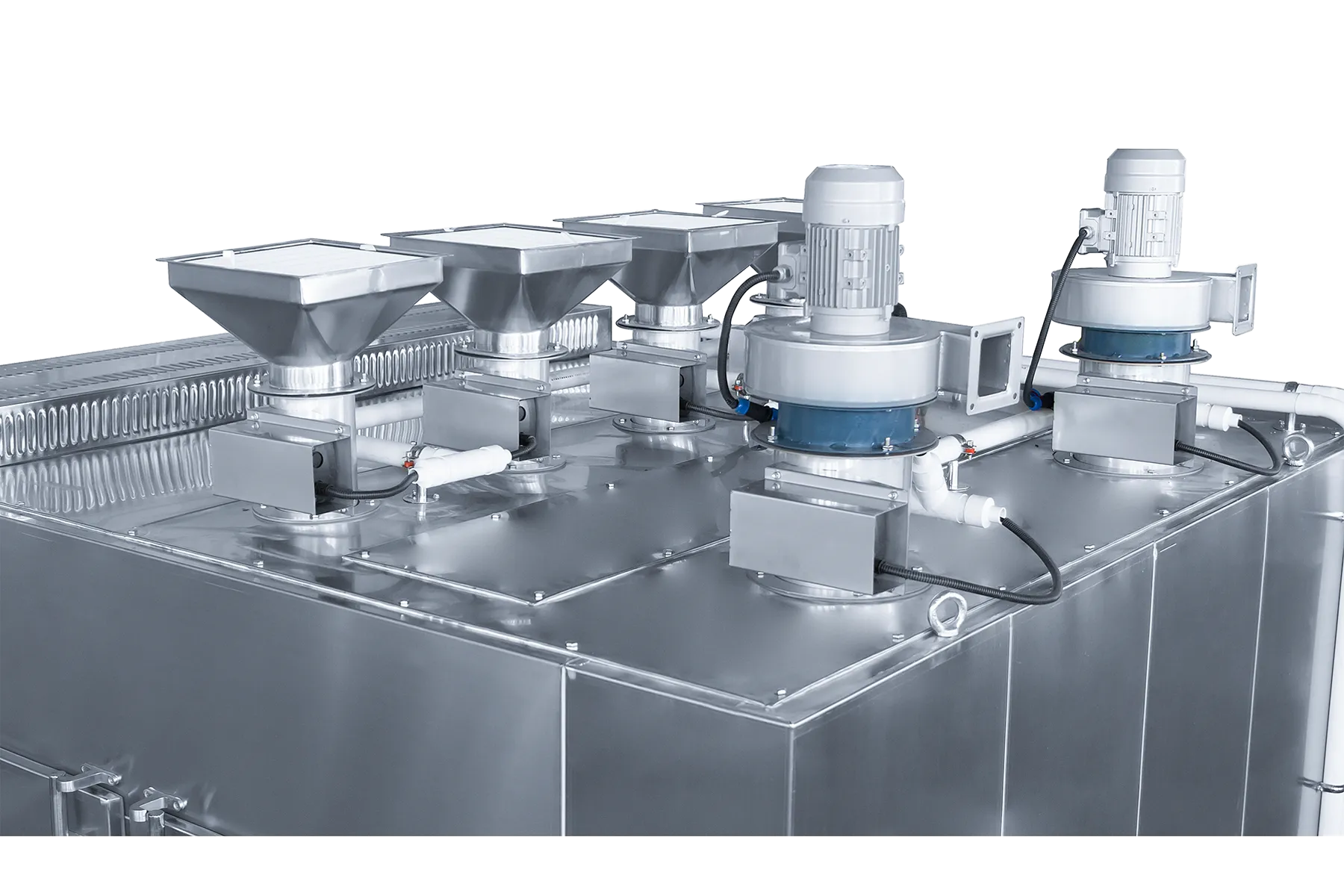

Number of Exhaust Fans	4
Exhaust Air Volume	850 m³/hr (per exhaust fan)
Static Pressure Rating	1020 pa (per exhaust fan)
Total Internal Airflow	170,400 m³/hr
Airflow per Trolley	21,300 m³/hr
Adjustable Air Speed	5% = 0.31 m/s to 100% = 6.29 m/s
Temperature Range	Ambient to 120°C
Total Trolleys	8
Trolley Dimensions (W x H x D)	920 x 1450 x 695 mm
Space Between Trays	40 - 80 mm
Total Trays	240 - 480 trays
Tray Dimensions	460mm x 640mm
Total Tray Area	70.7 - 141.3 m²
Timer	0 - 9999 Hours
Material	Double walled industrial-grade 304 stainless steel. Insulated with high density aluminium silicate cotton.

download user manual

download tech drawing

download

download spec sheet

download

Trolley options & specs

Model	IDUTC-15
Dimensions: (W x H x D)	920 x 1450 x 695 mm
Layers:	15
Layer Spacing	80 mm
Number of Trays	30
Tray area	8.8 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

Click image above to enlarge

Model	IDUTC-18
Dimensions: (W x H x D)	920 x 1450 x 695 mm
Layers:	18
Layer Spacing	67 mm
Number of Trays	36
Tray area	10.6 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

Click image above to enlarge

Model	IDUTC-20
Dimensions: (W x H x D)	920 x 1450 x 695 mm
Layers:	20
Layer Spacing	60 mm
Number of Trays	40
Tray area	11.8 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

Click image above to enlarge

Model	IDUTC-25
Dimensions: (W x H x D)	920 x 1450 x 695 mm
Layers:	25
Layer Spacing	48 mm
Number of Trays	50
Tray area	14.7 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

Click image above to enlarge

Model	IDUTC-30
Dimensions: (W x H x D)	920 x 1450 x 695 mm
Layers:	30
Layer Spacing	40 mm
Number of Trays	60
Tray area	17.7 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

Click image above to enlarge

Tray Types & specs

Model	IDUT-MT
Dimensions: (W x H x D)	46 x 64 x 1cm
Mesh Spacing	12 x 12mm
Tray area	0.3 m²

Model	IDUT-FMT
Dimensions: (W x H x D)	46 x 64 x 1cm
Mesh Spacing	2 x 2mm
Tray area	0.3 m²

Model	IDUT-FPT
Dimensions: (W x H x D)	46 x 64 cm x (2.5-4.5cm)
Mesh Spacing	15
Tray area	0.3 m²

Model	IDUT-PPT
Dimensions: (W x H x D)	46 x 64 cm x (2.5-4.5cm)
Mesh Spacing	8mm Ø
Tray area	0.3 m²

view features

plc control panel

startup screen

On the initial startup of your dehydrator, you will be presented with the BenchFoods Welcome Screen. From here you can navigate to the Manual Control page, the Program Control Page, or view the status of all system alarms.

plc control panel

manual control

Manual Control is used when you want to run a single batch cycle recipe that will not be used again and is simply a one-off cycle. The Manual Control Page allows you to set the dehydration environment variables. These consist of the time, temperature and the exhaust variables. Once you have confirmed that all the settings are correct, you can run your cycle.

plc control panel

manual control (cont.)

The right-hand panel will display the internal feedback metrics during your drying cycle, including your internal chamber temperature, internal product temperature, humidity level & drying cycle time remaining.

plc control panel

exhaust

Delay Start - This refers to the delay set on the exhaust fan before it starts running through its On/Off cycles; recommended times will be found in your user manual. This allows the unit to get up to temperature quickly and build humidity up in the chamber before the initial exhaust cycle starts.

plc control panel

exhaust (cont.)

Cycle On - This is the amount of time the exhaust fan runs every time it cycles. Cycle Off - This is how long the exhaust fan closes every cycle. Cycling the exhaust system on & off throughout the drying cycle allows the moisture to be wicked out from the centre of your product. This allows for even consistent drying throughout your product and prevents case hardening.

plc control panel

program control

The Select Program Screen displays a list of programs or recipes that can be pre-set to allow for quick access in the future. Program Control allows multiple time and temperature stages to run automatically during a single drying cycle. This is ideal for saving recipes for different products that you may be dehydrating.

plc control panel

program edit screen

Select the program number that you wish to set or access. This will display the program’s edit screen. You can update the required fields and save the program for later. If you want to use multiple steps during your cycle, set the temperature and hours/minutes for which this stage should last. If you do not wish to use all the steps, leave them at 0.

plc control panel

program edit screen (cooldown)

The cooldown cycle is the time the unit’s air fans stay on after your total drying cycle has been completed. The cooldown timer can be modified and allows for the product and trolleys, and trays to cool down before removing them from the drying chamber. The cooldown cycle for Manual Control is set to the default time of 30 minutes.

plc control panel

running a program

To start or run a set Program, open the Program Edit Screen and click the “Operate” button. From there, you will enter the Program Control screen to see the program overview and run the cycle.

plc control panel

running a program (cont.)

Here you can view the selected program, total duration, and remaining time. You can also see the chamber and material temperature and the chamber humidity.

plc control panel

running a program (cont.)

Here you can monitor your cycle's progress, including the current step, the inputted time of the step, the remaining time in the step, the step's set temperature, and other functional equipment feedback.

plc control panel

analogue control panel

Analogue control panels are available upon request. Please get in touch with one of our industrial experts for more information.

industrial dehydrator

Machine Features

CSV Data Export

Our Industrial Dehydrators feature a convenient USB backup system that automatically records all analytical feedback metrics during the drying cycle. This allows you to easily view and export a spreadsheet of internal chamber temperature, internal product temperature, and chamber humidity levels at 15-minute intervals from previous drying cycles. With this feature, you can keep track of all your drying cycle details and ensure consistent quality control. This is especially useful for production facilities audited by governing safety bodies like the USDA. With our CSV data export feature, you can easily comply with safety regulations and ensure the highest product safety and quality standards.

Remote Operational Control

With our desktop and mobile app, you can easily control and monitor your BenchFoods™ Industrial Dehydrator anywhere in the world. Connect your dehydrator unit to an Ethernet network, and you’ll have access to the actual PLC screen, allowing you to adjust settings and monitor progress remotely. This feature gives you greater flexibility and convenience in managing your drying process, allowing you to save time and maximize efficiency. With our remote operational control, you can be confident that your dehydrator is always performing at its best, no matter where you are.

DrySync™ Technology

Introducing DrySync™ technology. This advanced system allows you to precisely regulate the intake and exhaust valves for the airflow system. It starts by building up the humidity level in the drying chamber. Then it cycles the exhaust system on and off throughout the drying program to evenly remove moisture from the centre of your product. This ensures even and consistent drying while preventing case hardening, which leads to premature food spoilage due to internal mould and bacteria growth. With our DrySync™ technology, you can achieve optimal drying results every time, ensuring the highest quality end product.

Programmable Staged Drying

Our unique Programmable Logic Controllers (PLC) enable you to conduct staged drying cycles according to a predetermined recipe. With up to five customizable steps, each with its own programmable temperature and time settings, you can achieve precise and consistent results every time. This feature is particularly useful for “kill-step” processes when making beef jerky and for reducing dry times by starting the cycle with a higher temperature and then gradually decreasing as your product loses its moisture. With this method, you’ll achieve the same product consistency, texture, and appearance in less time without sacrificing quality.

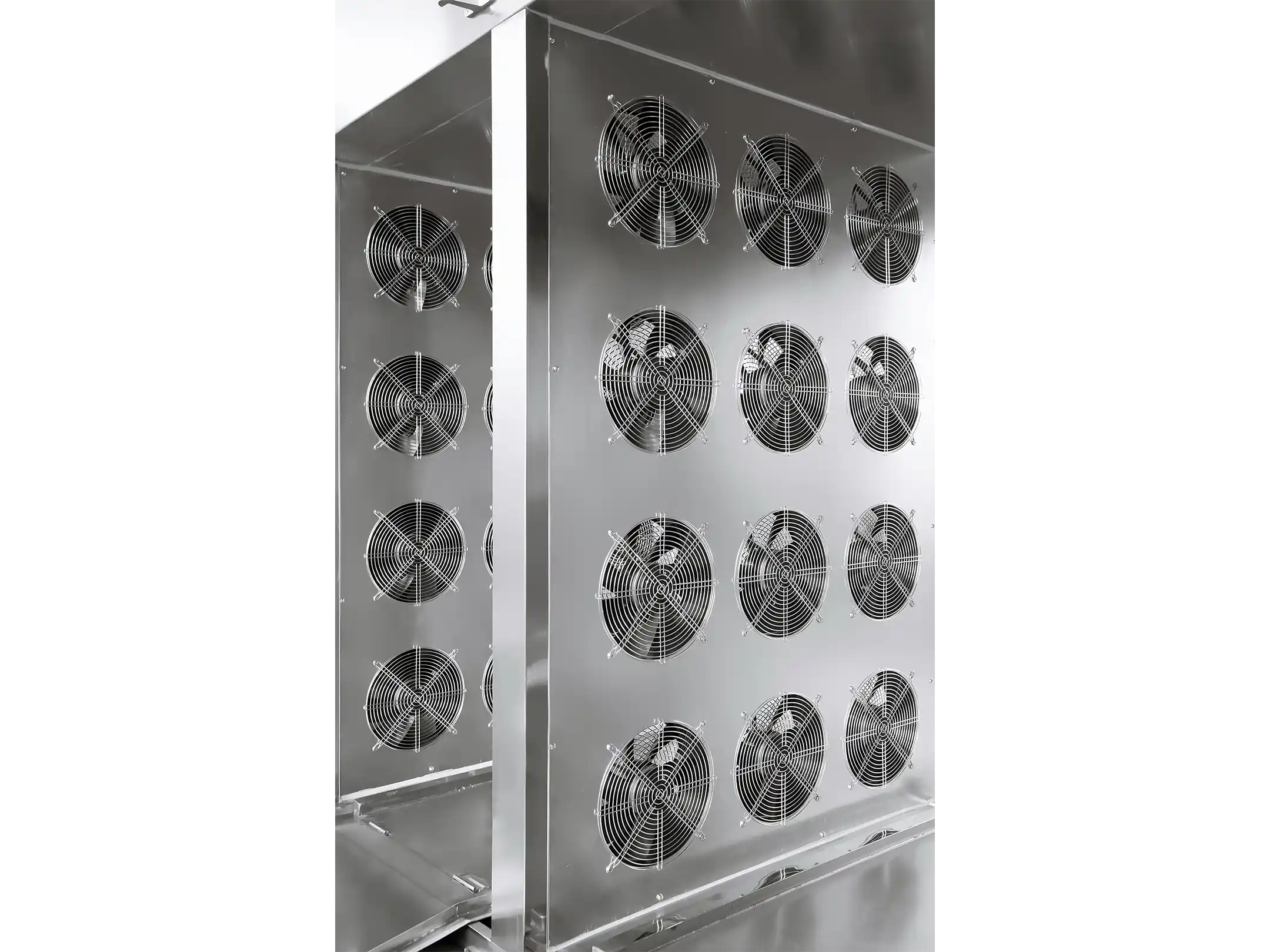

Uniform Drying without Rotation

With our advanced dynamic airflow panels, you will experience evenly distributed hot, dry air across every tray, eliminating the need to rotate your product or trolleys during the drying cycle. Meticulously laser-cut for optimal precision, these panels generate back pressure within the heating chamber, ensuring uniform drying throughout the chamber. With this technology, you can achieve consistent and efficient drying results without extra effort or intervention.

ISO 9001 Manufacturing Facility

Designed and manufactured in an ISO9001-certified facility, it ensures the highest quality standards are met throughout the entire manufacturing process. This internationally recognized standard for quality management systems is a testament to our commitment to excellence in every aspect of our operations, from design to production and beyond. Our ISO9001 certification assures our customers that we adhere to strict quality control processes, using only the highest quality materials and manufacturing techniques to ensure our products’ reliability, performance, and safety. By choosing our ISO9001-certified dehydrators, you can be confident in the quality and consistency of your drying results, and trust that you are investing in a product that has undergone rigorous testing and meets the highest standards of quality and safety.

Completion Cooling Cycle

Our Industrial Dehydrators feature a Completion Cooling Cycle, a vital part of any production process. This cycle ensures that your product is fully cooled to a safe temperature before being handled or packaged. This is important for worker safety, as stainless steel trolleys and trays can hold heat for quite some time. Additionally, bringing the core temperature of your product down fully prior to packaging prevents condensation or moisture from building up inside your packaging during storage, which can affect your product’s quality and shelf life. With our Completion Cooling Cycle, you can ensure the safety and quality of your end product while minimizing waste and maximizing efficiency.

Store Saved Recipes

Equipped with a Programmable Logic Controller that allows you to store up to 15 programs or saved recipes, each with individual programmable steps for temperature and time control. You can also operate a unique DrySync program and cooldown cycle inside these programs, making it easy to dial in your recipes and ensure consistent and efficient drying results. This feature is particularly useful for production facilities that may be doing food trials or drying different types of products. It minimizes the risk of human error and ensures the accuracy and consistency of your drying process. With our programmable recipe storage, you can easily access and modify your saved recipes, ensuring optimal efficiency and productivity for your operation.

Energy-Saving Technology

Our Industrial Dehydrators incorporates a patented Power-Throttling Technology that adjusts the power output based on the set temperature of the chamber. This innovative design allows the units to operate at a reduced power rating, resulting in an impressive 35-45% increase in energy efficiency compared to traditional drying ovens. With our energy-saving technology, you can achieve the same great results while reducing your energy consumption and costs.

Premium High-quality Components

Our industrial dehydrators are built using only the highest quality components and parts, ensuring unparalleled performance and durability. We pride ourselves on using top-grade brands such as Siemens and Schneider for our components, ensuring that our dehydrators are reliable and built to last. Our commitment to using the best components and parts is just one of the ways we ensure that our customers receive the best products possible.

Food-Grade 304 Stainless Steel

Our Industrial Dehydrators are constructed with the highest quality 304 Food-Grade Stainless Steel available. This stainless steel grade contains higher levels of chromium and nickel, which forms a protective layer on the surface, preventing corrosion (rust), and preventing the formation of bacteria and other microorganisms. Additionally, it’s non-reactive and won’t react with acidic or alkaline substances found in food and cleaning agents. This steel is also easy to clean and sanitize, which is essential in food production facilities. In summary, using food-grade stainless steel ensures food safety and hygiene by preventing contamination and maintaining the quality of the food being processed.

Speedy 3-Month Manufacturing & Delivery

We pride ourselves on delivering high-quality custom-built dehydrators to meet your specific needs and your onsite electrical requirements. From production to delivery, our team works closely with you to ensure your machine perfectly suits your unique requirements. And thanks to our streamlined manufacturing process, we can deliver your custom-built dehydrator to your doorstep in just three months. That means you won’t have to wait long to start enjoying the benefits of your new machine.

view faqs & warranty info

why choose a benchfoods dehydrator?

99 HOUR TIMER

Designed for all products and industries in mind, our 99-hour timer will cover anything you might need to dehydrate for more than a full day of drying time.

30-90°C PRECISION THERMOSTATS

Get the quality outcome you’re looking for with our precision thermostats. Outstanding temperature control and temperature hold anywhere from 30-90°C.

DOUBLE-WALLED STAINLESS STEEL

Double-walled stainless steel allows for better energy efficiency by keeping the heat where it belongs, inside the drying chamber. This feature also keeps the sides of the machine cool to touch.

COMMERCIAL GRADE QUALITY

Our entire product line is commercial grade stainless steel inside and out. Built for the demand of ongoing commercial use. These units are easy to clean, maintain, and most important food safe.

why choose a benchfoods dehydrator?

99 HOUR TIMER

Designed for all products and industries in mind, our 99-hour timer will cover anything you might need to dehydrate for more than a full day of drying time.

30-90°C PRECISION THERMOSTATS

Get the quality outcome you’re looking for with our precision thermostats. Outstanding temperature control and temperature hold anywhere from 30-90°C.

DOUBLE-WALLED STAINLESS STEEL

Double-walled stainless steel allows for better energy efficiency by keeping the heat where it belongs, inside the drying chamber. This feature also keeps the sides of the machine cool to touch.

COMMERCIAL GRADE QUALITY

Our entire product line is commercial grade stainless steel inside and out. Built for the demand of ongoing commercial use. These units are easy to clean, maintain, and most important food safe.

tech features

HORIZONTAL AIR FLOW

No need to rotate trays or flip product mid-cycle. Our units use horizontal airflow technology to create even drying across all trays every time.

TIME AND TEMP MEMORY

The unit remembers the last time and
temperature setting from your previous batch making it easier and quicker if repeating the same recipes in future batches.

TEMPERED GLASS PANEL

These completely food-safe glass panels allow you to operate the controls while wearing food safety gloves. Cleaning them is super easy and they can withstand impacts of 10,000 pounds per square inch, making them perfect for the commercial environment.

AMBIENT AIR MODE

If you desire to dry your product using fans only and no heat, simply set the temperature to 00 on the control panel. This can be great for drying products such as herbs, biltong and some seafoods.

tech features

HORIZONTAL AIR FLOW

No need to rotate trays or flip product mid-cycle. Our units use horizontal airflow technology to create even drying across all trays every time.

TIME AND TEMP MEMORY

The unit remembers the last time and
temperature setting from your previous batch making it easier and quicker if repeating the same recipes in future batches.

TEMPERED GLASS PANEL

AMBIENT AIR MODE

If you desire to dry your product using fans only and no heat, simply set the temperature to 00 on the control panel. This can be great for drying products such as herbs, biltong and some seafoods.

machine highlights

POWERFUL SEALED MOTORS

Waterproof fan motors feature top-grade dual ball bearings and pure copper coils with an ideal dehydrating motor speed of 1800rpm.

GLASS OBSERVATION WINDOW

Our heat-resistant tempered glass windows are extremely strong and don’t let any heat escape. Able to withstand an impact of 10,000 pounds per square inch. They can also withstand temperatures of up to 260°C.

PREMIUM FOOD-GRADE TRAYS

Our food-grade 304 stainless steel trays are made for the ongoing demand of the commercial food environment. They are easy to clean & maintain, dishwasher safe and are non-corrosive.

116 stainless steel hooks

With double the amount of hooks as our previous model, this 116 hook dehydrator increases your production capacity while maintaining the same energy consumption. The bottom rotisserie tray is also removable, providing you with the flexibility to only use 58 hooks for larger products.

STRONG CASTOR WHEELS

Our lockable caster wheels make moving the unit into place and moving them for cleaning extremely easy. Once you get the unit where you want it to stay, simply lock it into place.

view reviews

machine highlights

POWERFUL SEALED MOTORS

Waterproof fan motors feature top-grade dual ball bearings and pure copper coils with an ideal dehydrating motor speed of 1800rpm.

GLASS OBSERVATION WINDOW

PREMIUM FOOD-GRADE TRAYS

Our food-grade 304 stainless steel trays are made for the ongoing demand of the commercial food environment. They are easy to clean & maintain, dishwasher safe and are non-corrosive.

116 stainless steel hooks

view reviews
